Icom PS15 $110 User manual ,Schematic Diagram

original good working conditions call +628129909393 sale IDR 1.250.000,- SOLD to Cinere

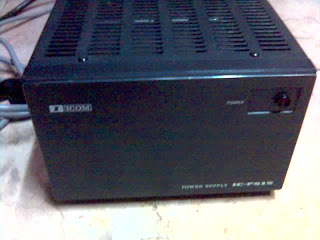

The ICOM PS-15 regulated power supply delivers 13.8 VDC at 20 amps (50% duty cycle). It employs 4 transistors and 7 diodes. The rear panel, has a hard-wired, high amperage cable with the Icom standard Molex plug plus a fuse jack (for supplied 10 amp fuse). 220 VAC input. 7.1 x 4.4 x 11.5 inches 18.1 lbs User Manual+Schematic Diagram
